Rotary Type K-Cup Packing Machine

Ref: CPR4501K

The K-cup rotary machine is one of the most popular products for small and medium-sized enterprises and start-up companies in North America. It not only meets the daily production and quality requirements of our customers but its small footprint makes this our best-selling coffee capsule sealing machine.
We have provided suitable solutions for many customers and accompanied them all the way. In addition to the capsule-filling machine, we also purchase empty Kcup and film for our customers, providing them with a one-stop service.
We are a leader in this industry, we are more than happy to share our experience with our customers and provide them with customized and suitable solutions. If you have any related questions, feel free to contact us.

Wholesale Enquiry

More Details

Brief Introduce:

1. Rotary-shaped packaging machine with a speed of up to 50-70K cups per minute.

2. Quickly replace different mold plates to produce different types of coffee capsules.

3. Small footprint, higher speed, complete functions, and full automation.

Standard stations

Vertical coffee capsule feeding system (dropping station).

Empty cup detection

Vacuum feeder

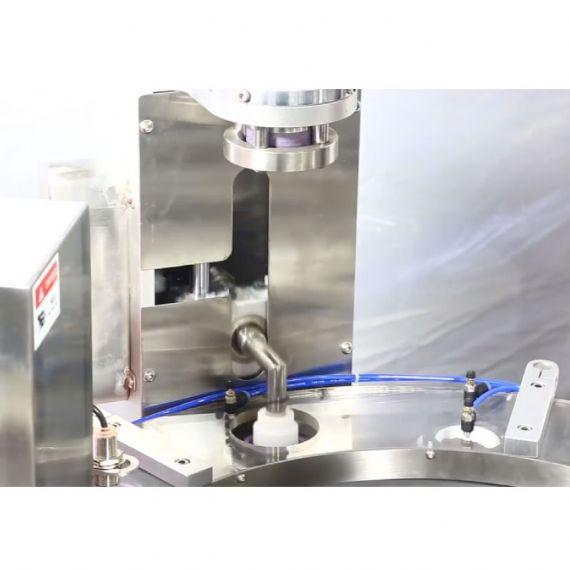

Servo-driven filling

Compressed filling head and material level detection and anti-static

Nitrogen plate (nitrogen filling device)

Clean the edges of the capsule and compress the coffee.

Put on the pre-cut lid (roll film can also be used).

Lid detection

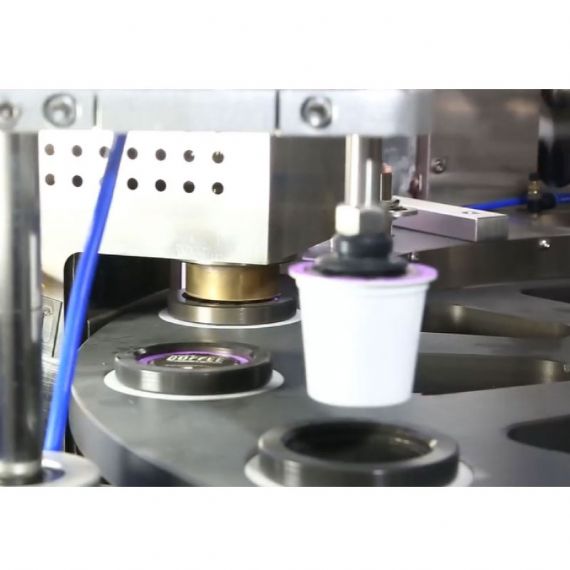

Heat sealing and finished product output.

Characteristics

1. The machine occupies a small area and saves space.

2. Faster speed, up to 3900cups can be produced per hour

3. Fully automated production.

4. 70-100 empty capsules can be stored in the vertical cup load station. (Can be lengthened)

5. Servo motor drive maintains high and stable filling accuracy.

6. Material level detection alarm, no cup alarm, door open alarm.

7. The compressed filling head and the anti-static device can effectively avoid dust and make the sealing more perfect.

8. PLC touch screen control, you can manually open and close the station to detect. Adjust machine parameters

9. Secondary sealing improves the tightness of the finished product

10. Nitrogen system: The machine can be directly connected to the nitrogen generator.

11. Famous brand accessories, such as Omron, Schneider, SMC, etc.

Optional stations

1. Auger lifter conveyor

2. Flavor pump system: This can help you drop precise flavor liquid (0.01ml) into every K-Cup online

3. Checker weigher system

4. Customize the conveyor belt and flip-flop: it will automatically count and shift to the next box. Good for a bulk pack like a 96ct box

5. Printer lot number

6. Internet remote support

7. Paper box packaging machine

Technical parameters:

Model	CPR7001L-K
Suitable for	Keurig K-Cup compatible type (empty K-Cup, K-Cup with filter ready, etc.)
Capacity	50-70cups/min (adjustable)
Filling type	The Servo motor is a driven auger filler
Filling accuracy	±0.1g-0.15g
Sealing type	Pneumatically driven heat and seal, Omron precise temperature controller to adjust
Voltage	220v 50/60hz—3PHASE (by customer)
Dimension	1200(L)1000(W)2150(H)mm
Weight	750kg
Compressed air consumption	0.2-0.3 m3 per minute @ ≥ 0.6Mpa
Certification	CE, ISO Compliant
