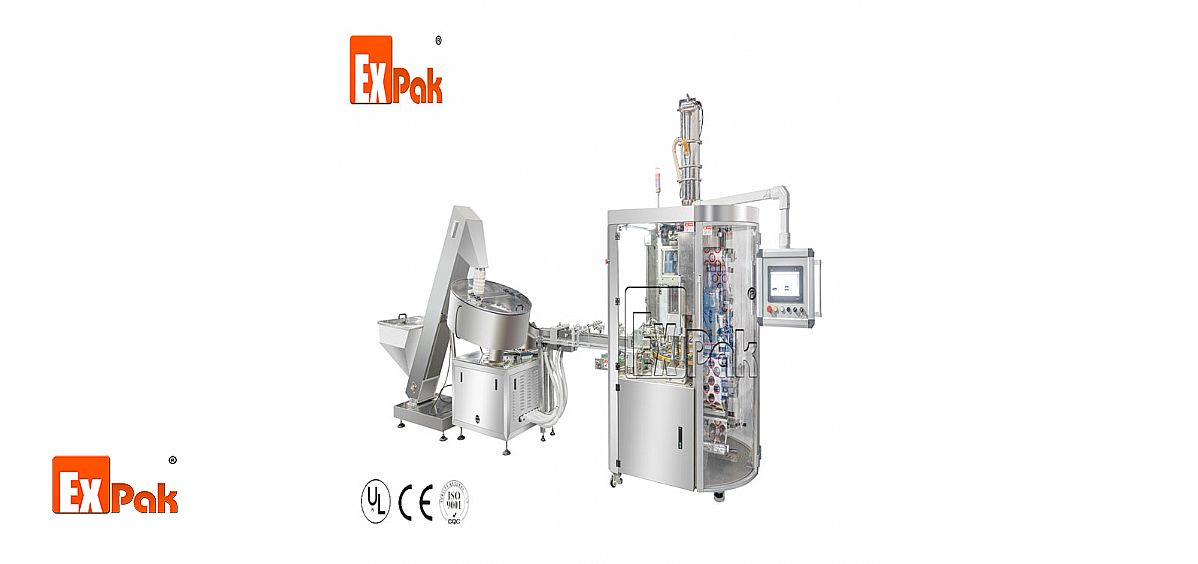

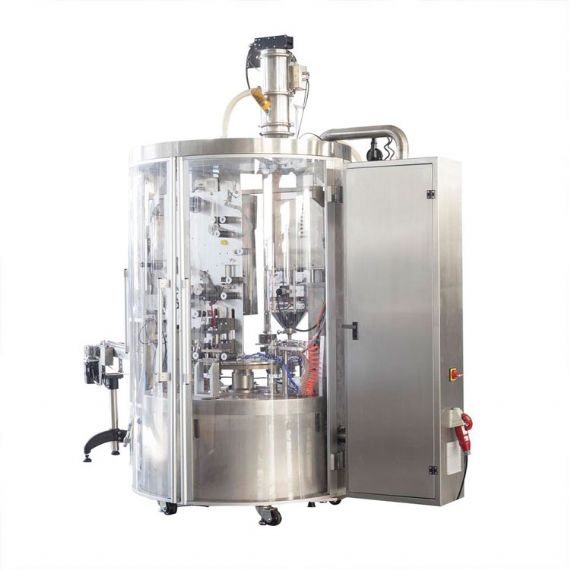

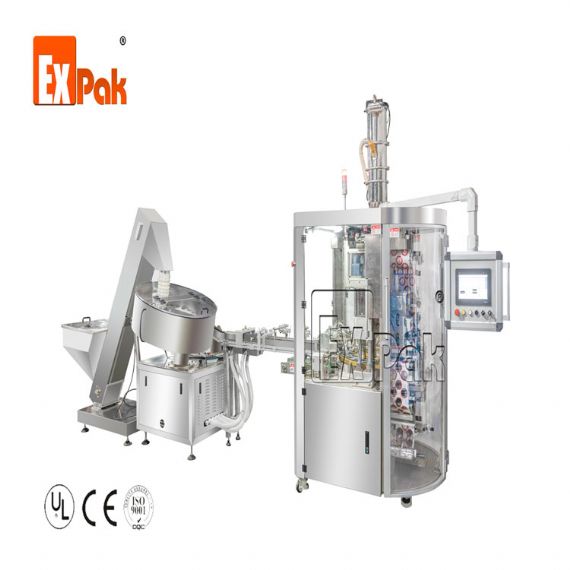

Rotary Type Lavazza Coffee Capsule Filling Machine

Main features:

Easy to learn and operate, fast install, and start production instantly.

Small size, higher speed capacity, and lightweight to fit the limited workspace

Stable quality and excellent accuracy filling (servo motor filling); the filling accuracy ranges between ±0.05-0.15

PLC control and real-time monitoring

Nitrogen system: flush capsule. Residual oxygen is less than 5%.

Suitable to fit for ground coffee, powder, and herbal tea.

Typical for: Nespresso, K cup, Lavazza blue, instant dolce gusto

Extended 24 months manufacturer direct warranty

Functions:

Auto load empty capsule and sensor check

Filling material into the capsule(±0.1g)

Auto-clean the cup edge

Grab the foil lid and place ready on the cup

Check lid in position and seal(flat seal or ring curve seal)

Finished capsules grab out.

Technical parameters:

Model	CPR4501K
Suitable for	Keurig KCUP compatible type (empty k cup, k cup with filter ready, etc.)
Notice	One machine is made for one capsule. If more capsules need to be confirmed by us
Capacity: PRECUT LID	Over 45pcs/min
Filling type	Servo motor-driven auger filler.
Filling accuracy	±0.1g
Sealing type	Pneumatically driven heat and seal curve ring Omron precise temperature controller
Voltage	220v 50/60hz—3PHASE (by customer)

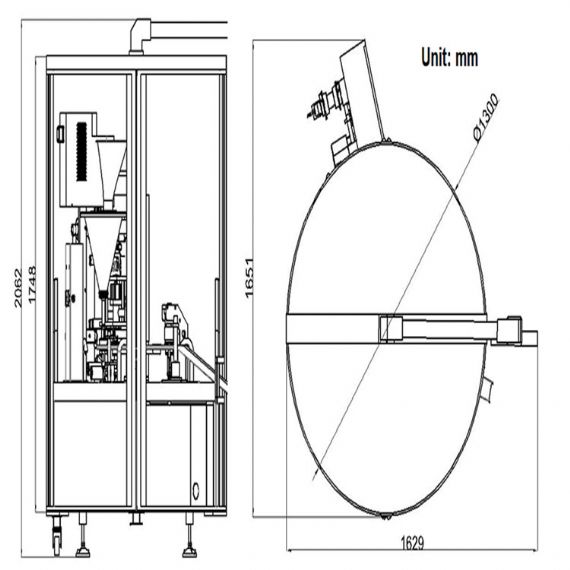

Dimension	1651mmX1629mX2062mm
Weight	750kg
Compressed air consumption	0.3-0.4 m3 per minute @ ≥ 0.6Mpa
Certification	CE, ISO Compliant

Detailed features:

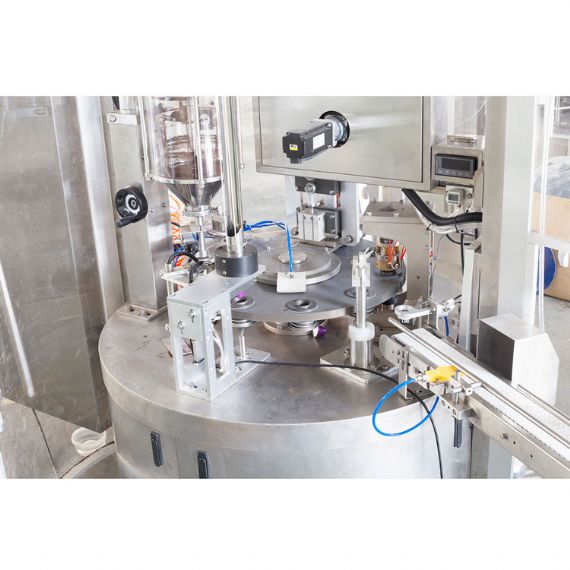

Empty Lavazza blue loading station load cups into the machine		Transparent coffee tank filler station
No cup no filling function by sensor check		Server motor-driven compressed filler.
Coffee dust cleaning system (Airbest filter)		Type 1:Grab and put the precut foil onto each k cup
Heat sealer to seal the filled capsules		Grab the packed cups out and put on a belt
The nitrogen flush protection system keeps freshness.		English touch screen panel easy to operate
