In daily production, switching between different products is very common. Although this production step may seem minor, it can actually have a major impact on operations. Each changeover means production stoppage, so the time required for changeover is critical. It directly affects production efficiency and whether orders can be completed on time. Let’s take a deeper look together.

1. What Is Changeover in a Coffee Capsule Filler Machine?

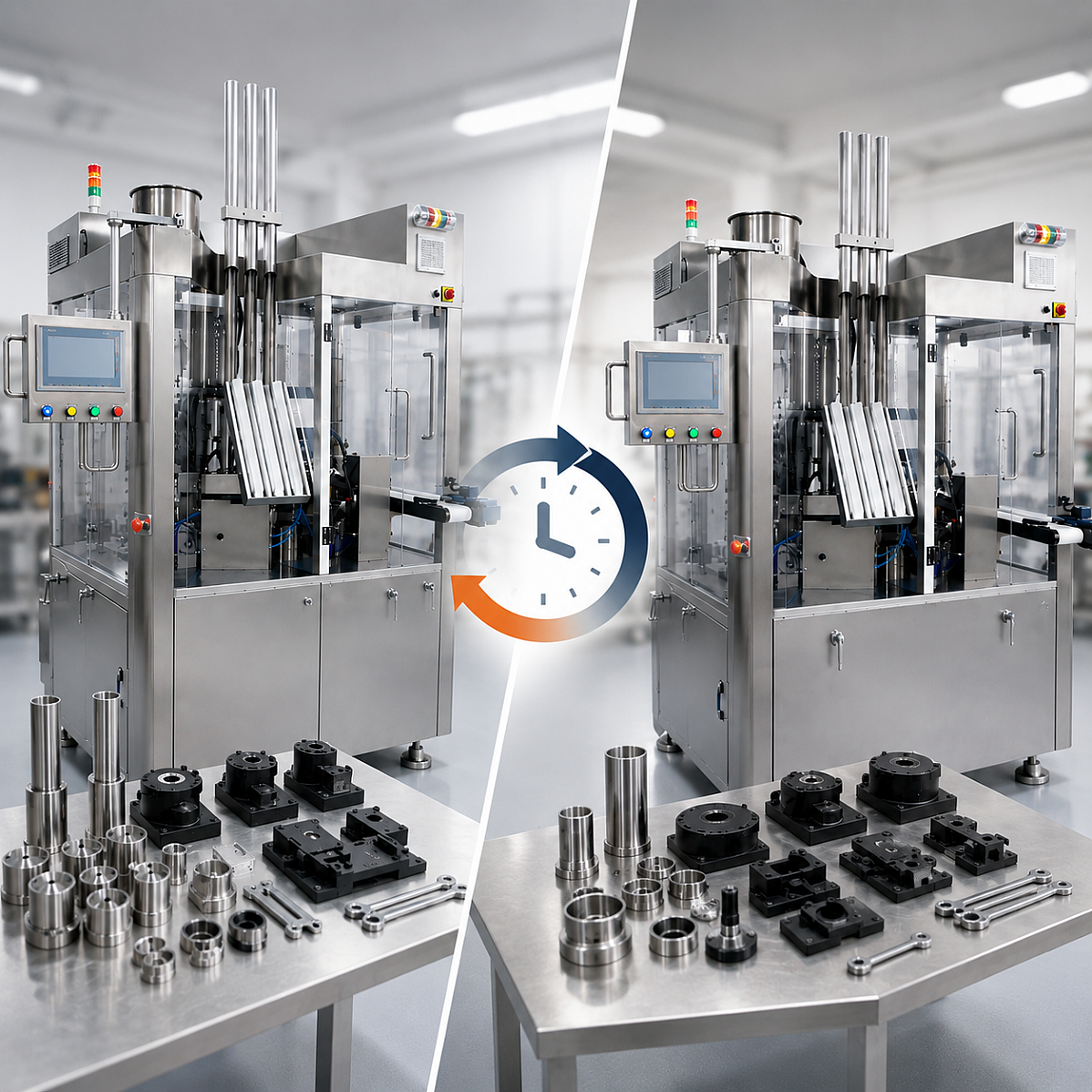

So, what exactly is a changeover?This refers to adjusting the machine system or replacing certain parts to produce different styles of products. In most cases, changes in capsule size, shape, or format require a changeover.

To put it simply, if you are producing aluminum Nespresso capsules in the morning and need to switch to K-Cup capsules in the afternoon, this cannot be done by simply pressing a few buttons or changing a program setting. Operators must manually adjust or replace certain mechanical parts on the machine. That process is called a changeover.

2. Typical Changeover Time Range

Although changeover times are never completely fixed, based on standard machine designs and normal operator experience, we can use the following average time ranges as a general reference:

Change Type	Average Time
Coffee recipe only	5–10 minutes
Filling weight adjustment	5–10 minutes
Lid roll replacement	10–20 minutes
Different capsule formats	40–90+ minutes

3. Why Do Some Changeovers Take Longer?

A common misconception is that a changeover only requires replacing the tooling.But that's not actually the case. Besides tooling replacement, most changeovers also require adjustments to multiple machine systems, which significantly increases downtime.

When switching to a different capsule type, it may involve replacing components such as new cup holders, sealing tools, positioning parts, and more. The greater the differences between products, the more components need to be changed. In addition, after switching between different capsule materials such as plastic capsules, aluminum capsules, and compostable capsules, sealing parameters often need to be adjusted as well. Operators may need to fine-tune temperature, pressure, and sealing time, which further increases the overall changeover time.

If the product itself remains the same and only the filling system needs adjustment — for example, switching between dark roast and light roast coffee, fine grind and coarse grind, or different coffee densities — operators typically only need to adjust auger parameters, filling speed, and machine settings. Compared to a full capsule format change, this process is much simpler.

4. Rotary vs Linear Machines: Which Changes Faster?

Previously, we discussed the differences between linear system machines and rotary system machines. After reading this article, you probably understand that there is no simple answer to which machine changes over faster.The time required for conversion is affected by many factors. https://www.expakchina.com/news/762-rotary-vs-linear-coffee-capsule-filling-machines--which-one-is-better-.asp

A more practical way to think about it is to ask yourself: "How often will I need to change products?”

5. How to Reduce Changeover Time

Everyone wants smooth production with as little downtime as possible. So what are some practical tips to reduce changeover time?

First: Standardize capsule types.

In simple terms, intentionally limiting the number of capsule types you run can reduce the need for frequent tooling changes and repeated setting adjustments.

Second: Organize tooling parts.

If changeovers are unavoidable, it is extremely important to properly organize and store all tooling components. Keep them clean, clearly labeled, and well arranged so they are always ready for use. This not only saves time searching for parts, but also helps avoid major production losses caused by missing components.

Third: Train operators.
Having at least one experienced operator who is highly skilled in performing changeovers is critical. A well-trained operator can dramatically reduce the amount of time required for each changeover.

6. Frequently Asked Questions

Q1: Can one machine handle multiple capsule types?
Absolutely. As mentioned throughout this article, one machine can handle multiple capsule types, but changeover time is required between products.

Q2: Does more flexibility reduce machine efficiency?
In many cases, yes. Designing a machine to handle a wider range of products usually makes the system more complex, which can sometimes reduce efficiency.

Q3: Is changeover difficult?
Modern machines are becoming increasingly user-friendly and easier to adjust, making changeovers more flexible and simpler than before. However, even with improved machine designs, having skilled operators remains extremely important. Never overlook operator training.

7. Final Thoughts

At the end of the day, no machine is perfect for every application, and there is no universal definition of the "ideal” changeover time. Different manufacturers and production facilities have different expectations and priorities. However, the goal is always the same: finding the right balance between flexibility, production efficiency, and investment cost in order to maximize overall value.

Choosing the machine that best fits your specific production needs is always the best solution.https://www.expakchina.com/coffee-capsule-filling-machine/k-cup-filling-machine-886.asp

EXPAK has extensive experience in this area, and we are always happy to discuss your project anytime. https://www.expakchina.com/contact-us.asp
